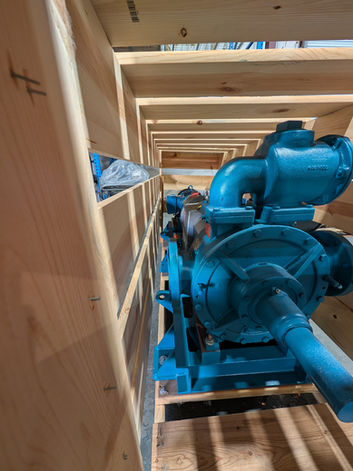

Blackmer Sliding Vane Pump MLX4B w/ (HRB) Reducer 4.36:1

Basetek Baseplate, Couplings, Guards & Motor XP 18R 20HP 3P 230/460V 256T 60HZ

Ductile Iron, sliding vane pumps with double-ended-keyed shaft

5 Vane Materials: (5) Laminate-FS

40 Shaft: (40) Double Ended Key Shaft

SO Seal: (SO) Steel / FKM / Carbon/ FKM (SVCV)

1 Relief Valve: (1) Bolt On

5 Spring Valve Range: (5) Steel /76-125 PSI

2 O-Ring: (2) FKM

Integral 4" ANSI CL 150 FF Flanged Connections

MT Mounting Arrangement (MT) Pump and Reducer Mounted on Base

HRB Drive Type: (HRB) Reducer Mounted on Base

(HRB) Reducer, Baseplate, Couplings and Guards

Speed Reducer Ration: 4:36:1(400/335 RPM) / R0436

M256T Motor Frame

XP929235 Motor: XP 18R 20HP 3P 230/460v 256T 60Hz 929235

​​​

Maintenance Kit 898982

​​​

Rebuild Kit 899082

​​

See drawing and brochure

​
